ANSI ISEA Puncture Levels

ANSI/ISEA 105 PUNCTURE LEVELS


21% of all injuries that required days away from work in 2020 were to the hands and arms

ANSI/ISEA 105 Puncture testing identifies the performance characteristics of hand and arm protection products against punctures from pointed objects. There is a separate test (not covered in this guide) for hypodermic needle testing. This puncture testing standard measures how quickly a hole is formed, in PPE products such as gloves and sleeves, when a pointed object attempts to puncture the surface. The result is classified on levels 1-5.

Average Injury Rate Graph

ANSI/ISEA 105-2023 New Icon Designation


ANSI/ISEA Icon - Puncture

Testing Results

Both the ANSI/ISEA and EN standards for puncture resistance use the same test, in which a steel stylus punctures a test specimen held on a retaining device. The stylus has a tip with a diameter of 1 mm, and resembles a nail or pencil more than it does a hypodermic needle. The force on the stylus at the moment of puncture determines the puncture level. Although the test is the same for both ANSI/ISEA and EN standards, each standard uses different weights to determine puncture level.

Puncture Levels

ANSI/ISEA Puncture Levels

Puncture HAZARDS
Level 1 General Maintenance, General Purpose, Manufacturing, Small Parts Handling
Level 2 Automotive, Construction, General Maintenance, General Purpose, Landscaping, Manufacturing, Material Handling, Small Parts Handling, Warehousing
Level 3 Landscaping, Brickwork, Construction, Assembly, Warehouse, Oil and Gas, Construction, Mining, Petrochemical, Utilities
Level 4 Aerospace Industry, Assembly, Automotive, Carpentry, Construction, Demolition, General Maintenance, Glass Handling, Handling Oily Components, HVAC, Infrastructure Maintenance, Machine Operation, Maintenance, Manufacturing, Material Handling, Metal Fabrication, Parts Handling, Recycling, Roofing, Small Parts Assembly, Steel Framing, Utilities
Level 5 Recycling, Cable, Construction, Demolition, Forestry, Lumber, Rebar Handling, Barbed Wire, Waste Management

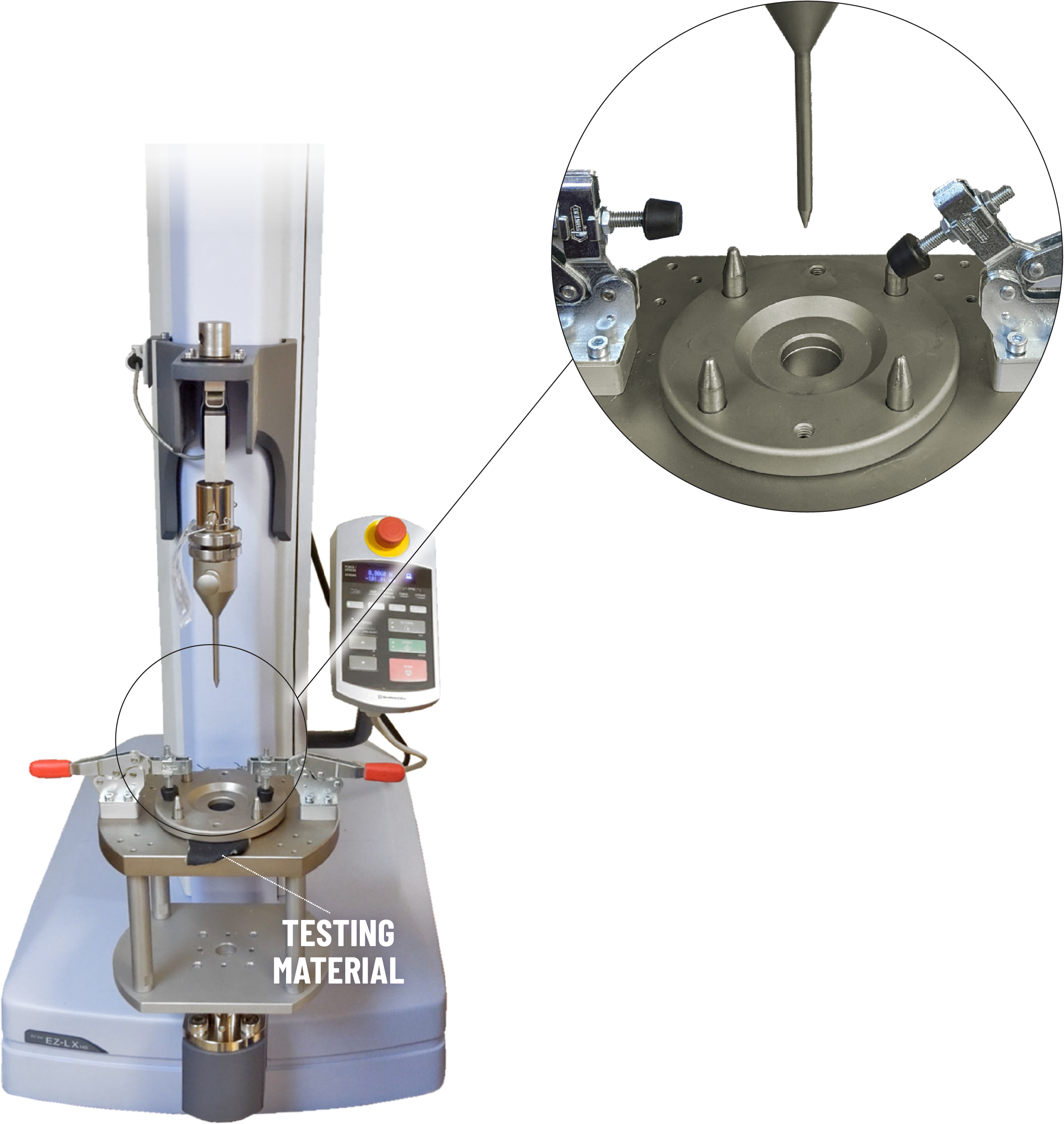

Puncture Testing Process

  1. A pointed probe similar to a ballpoint pen is fitted into the machine at a 90° angle
  2. The material to be tested is positioned and secured between two metal plates
  3. The probe is lowered, penetrating the test fabric at a speed of 100mm/min
  4. Results are reported in Newtons
ANSI/ISEA 105 Puncture Testing
